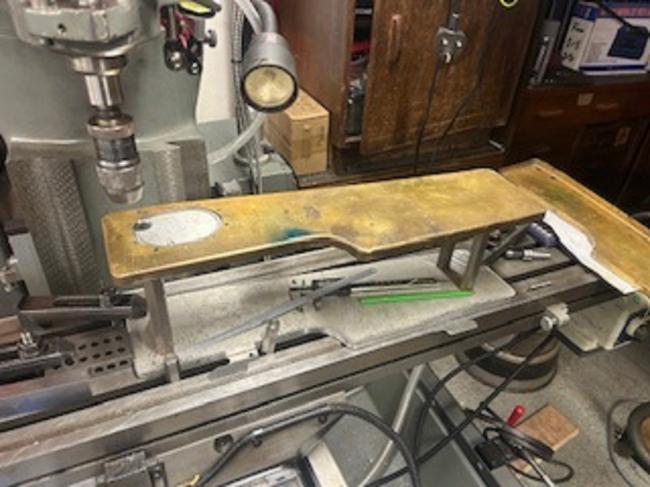

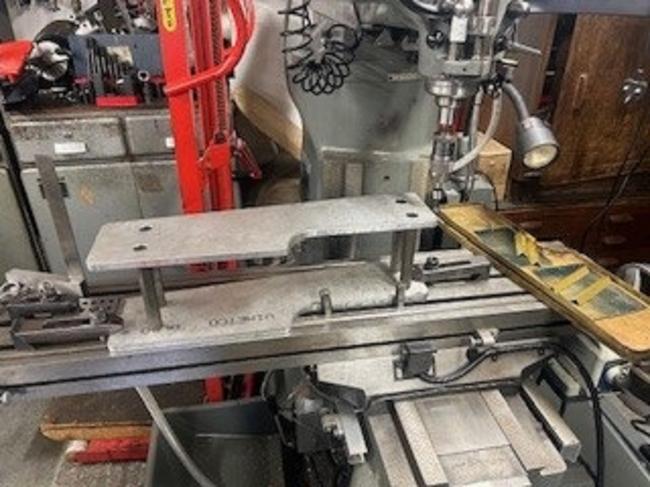

Aluminium formers for water tank side flanging, drilling and forming wrapper sheet.

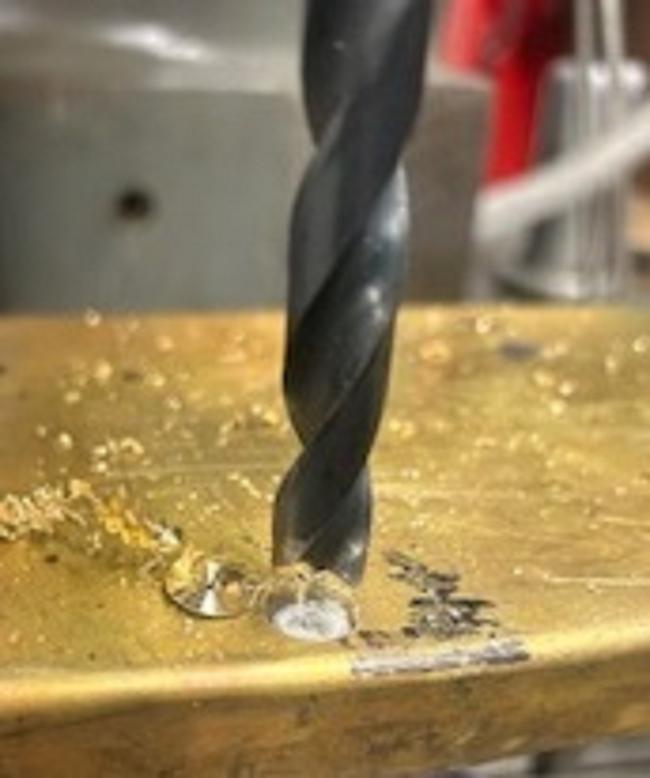

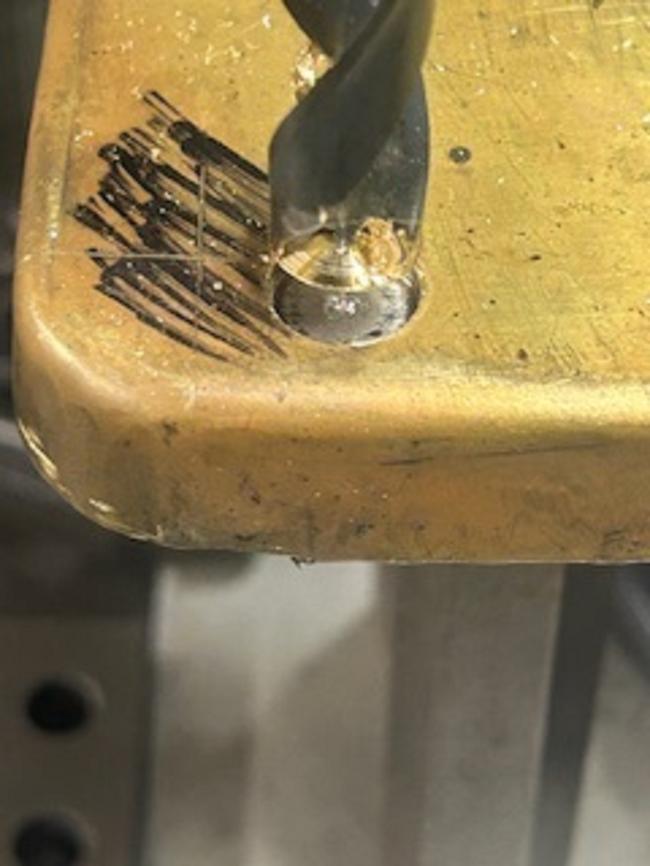

Sheet metal drill cutting bush holes.

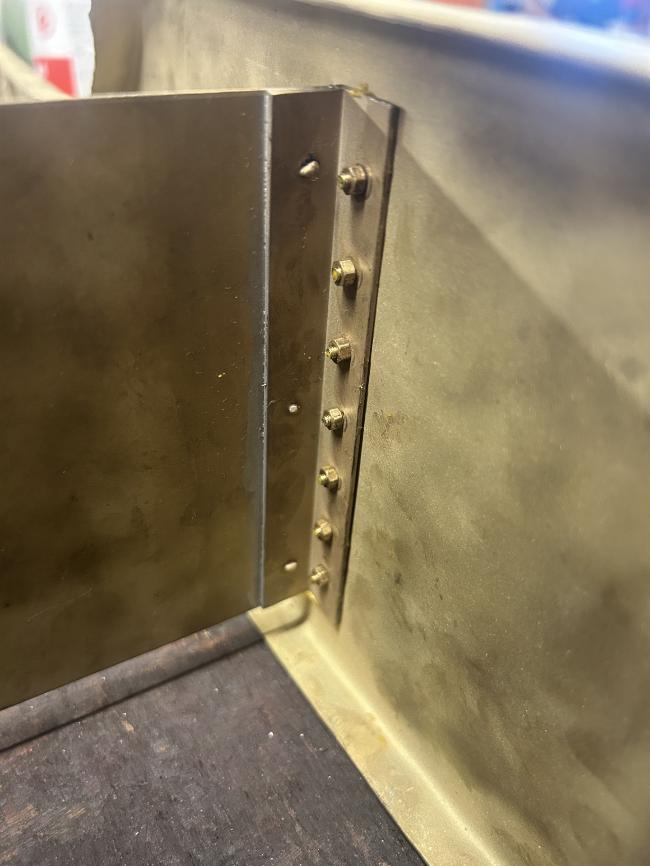

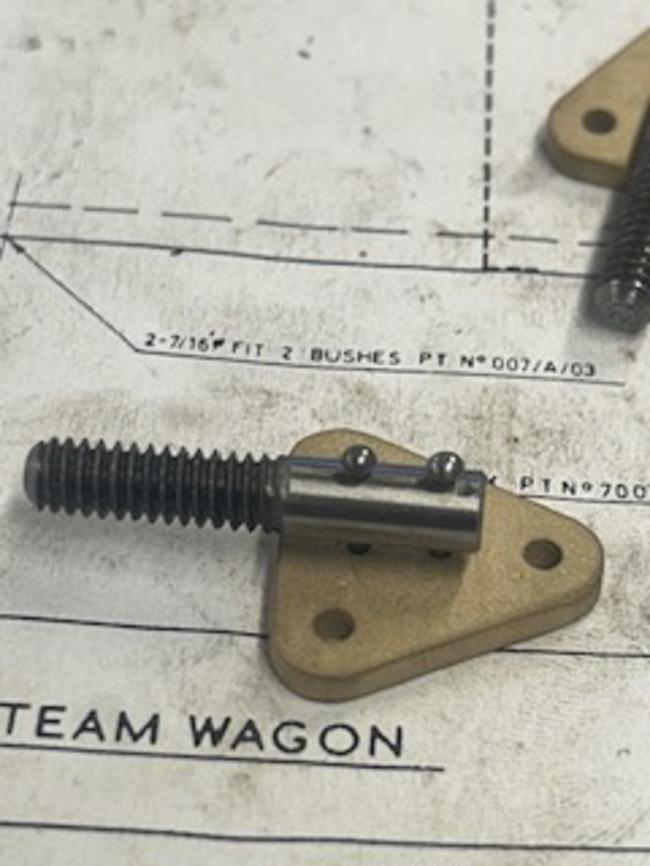

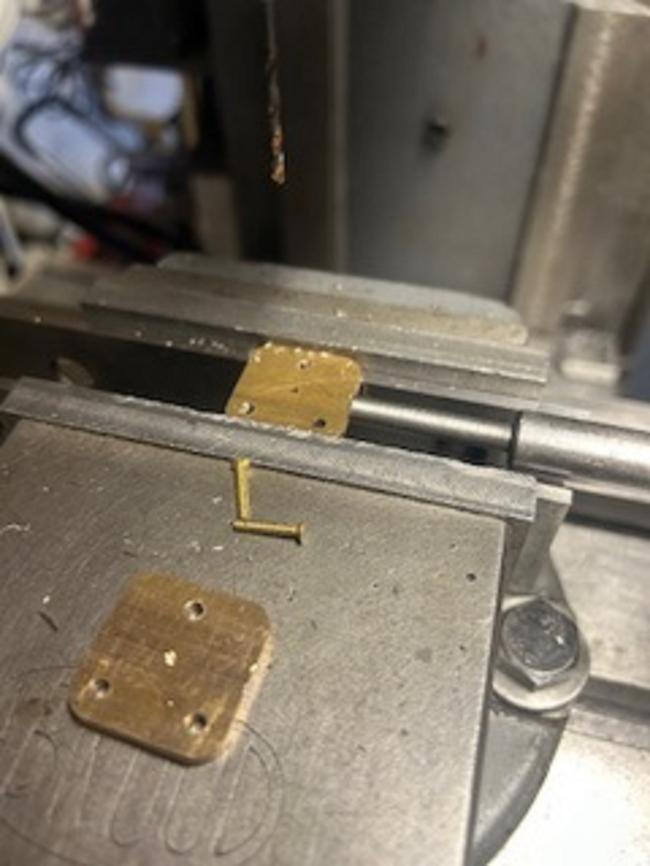

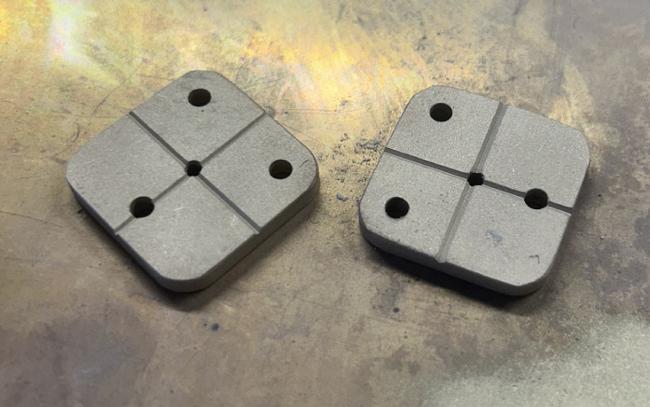

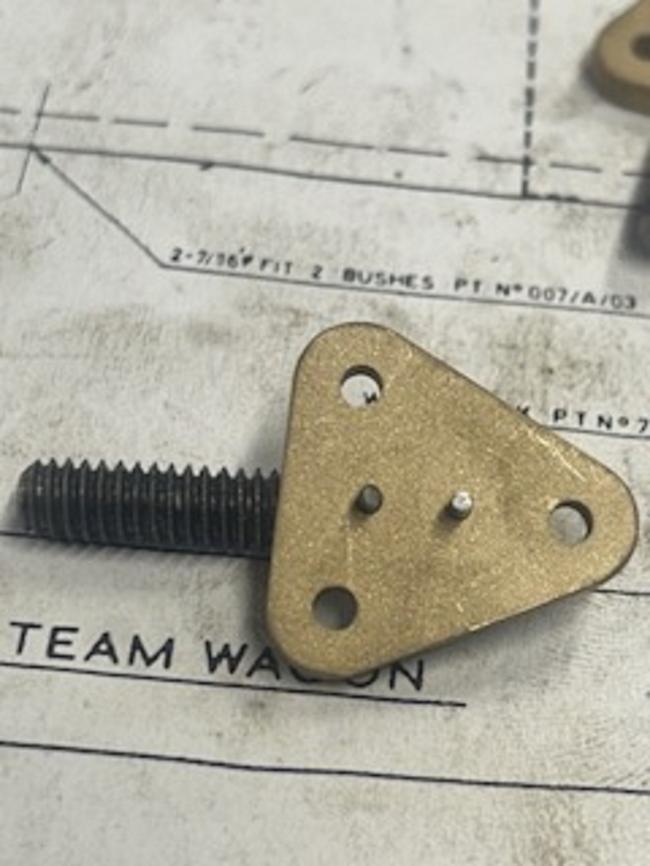

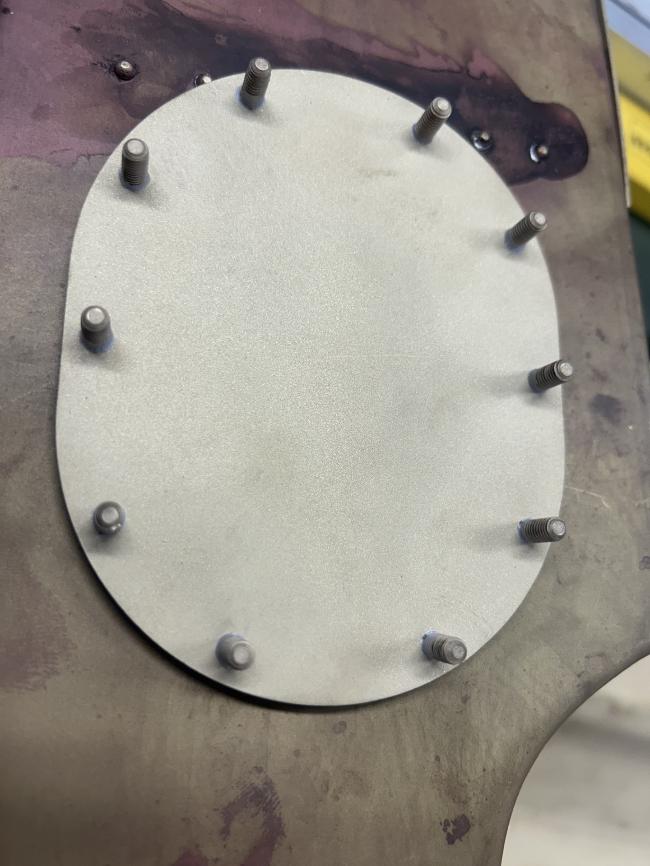

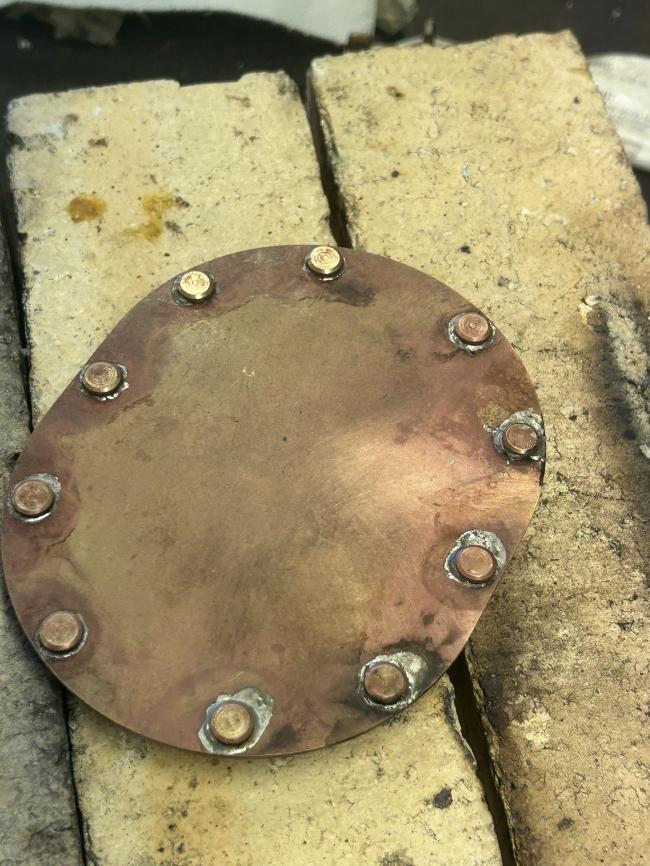

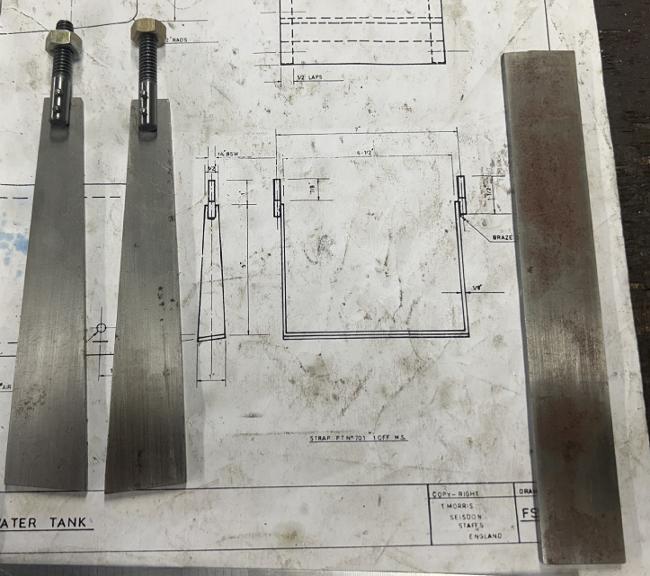

Reinforcement pads for chassis mounting brackets soldered to the inside of tank.

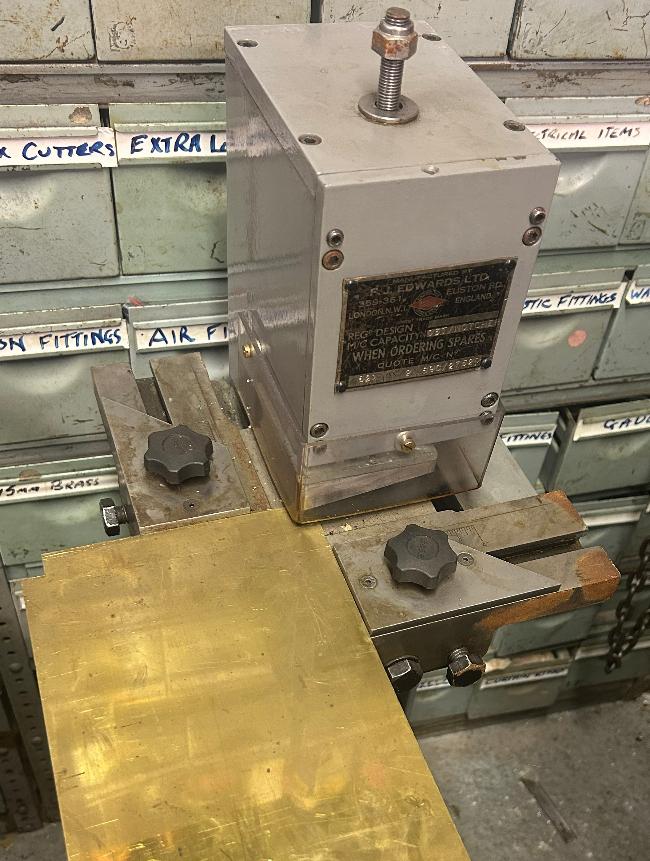

Edwards corner notcher.

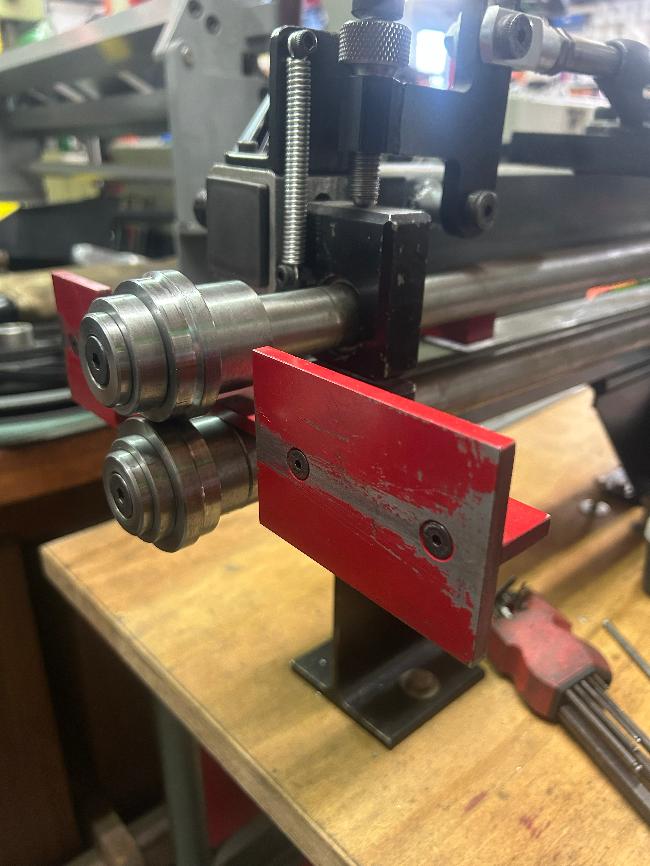

Homemade bead roller fitted with joggle rollers

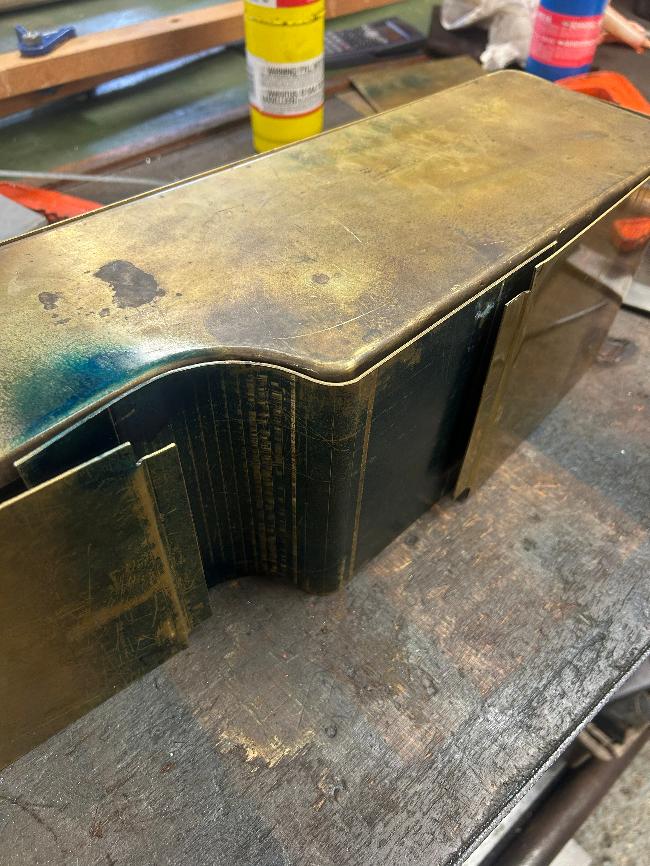

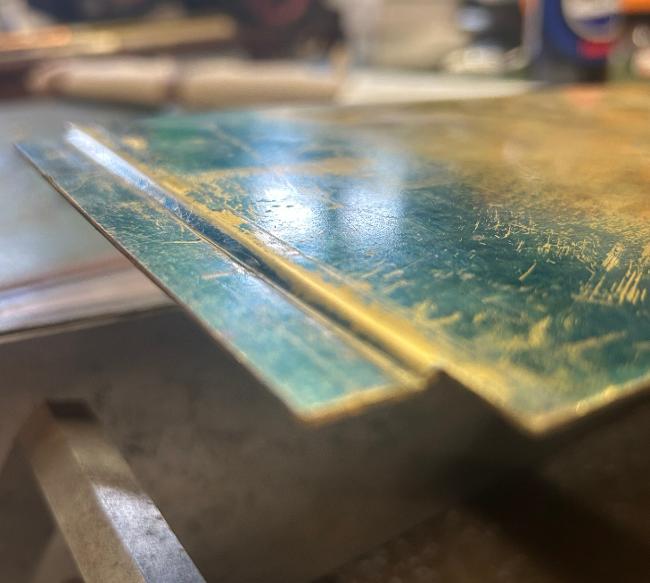

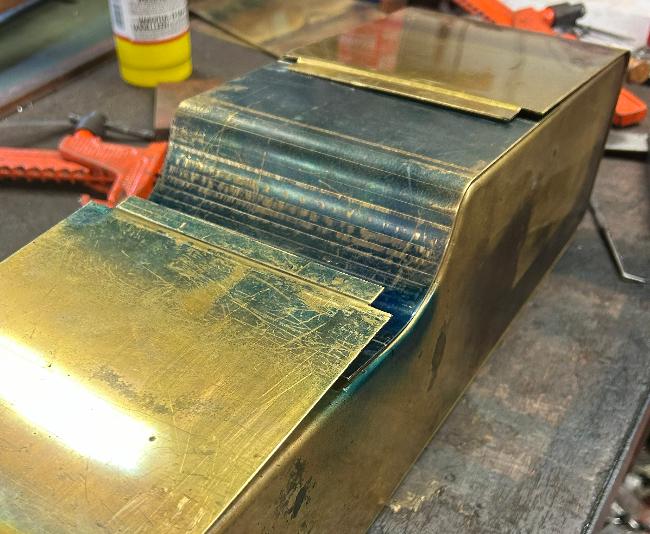

Joggle in wrapper to join mating parts.

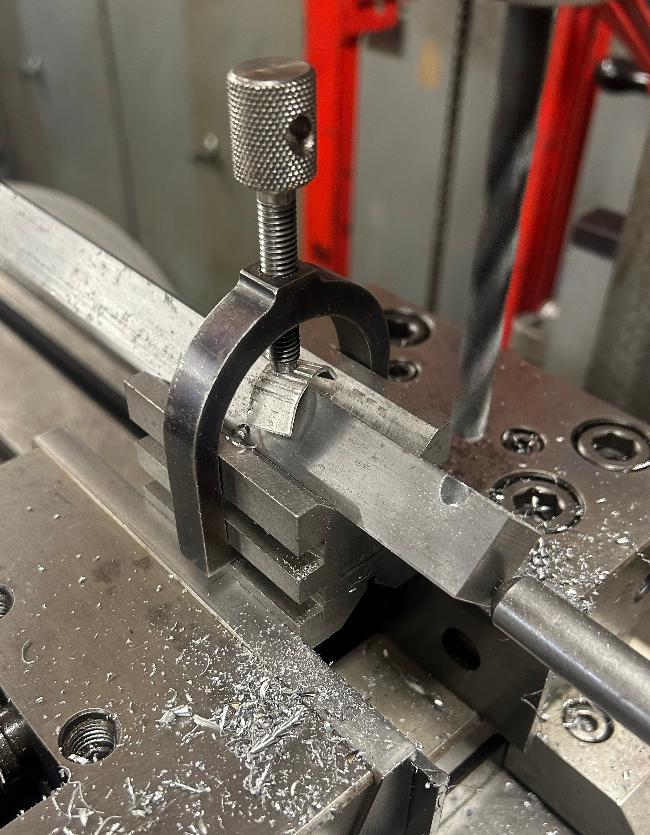

1" diameter tool used in brake press to form radius in wrapper sheet.

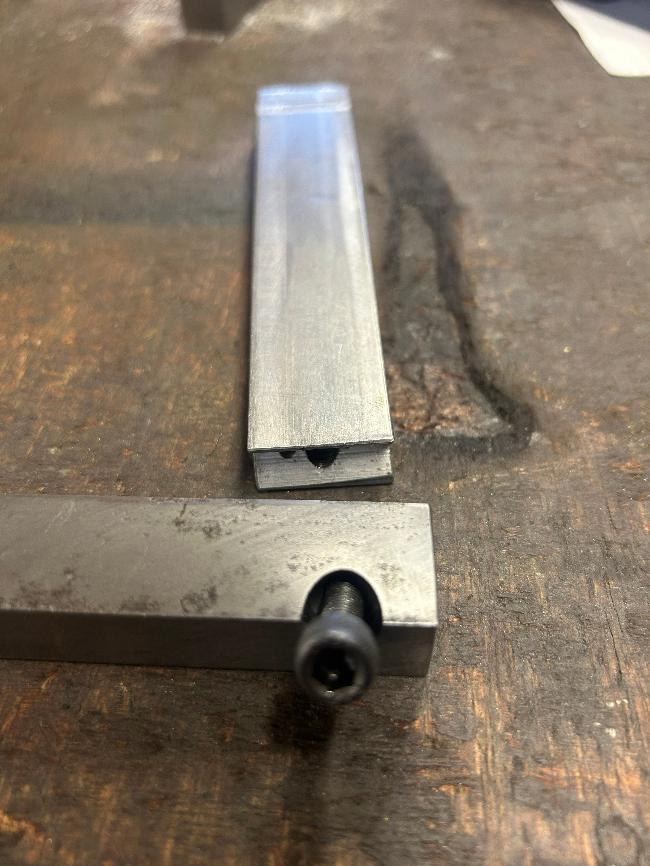

Bump tool to be used on press brake to create 2 radius.

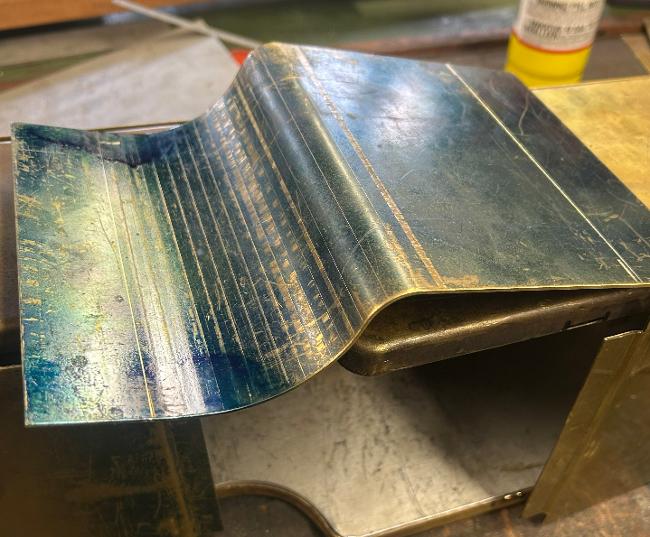

2" bumped radius.

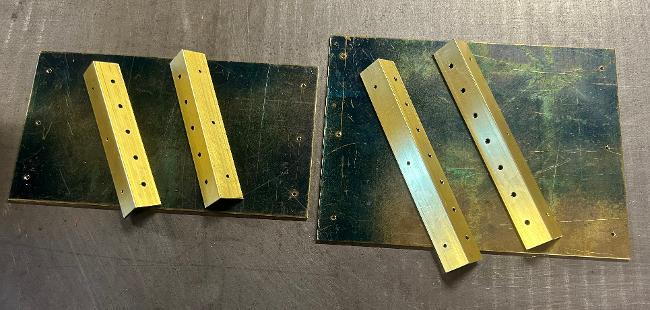

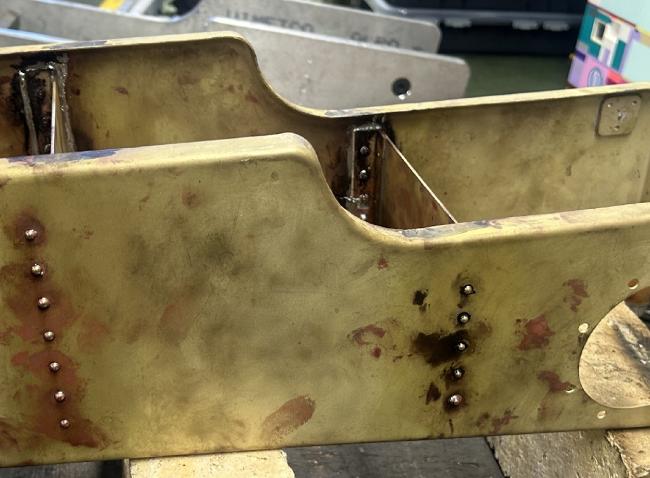

Internal baffles.

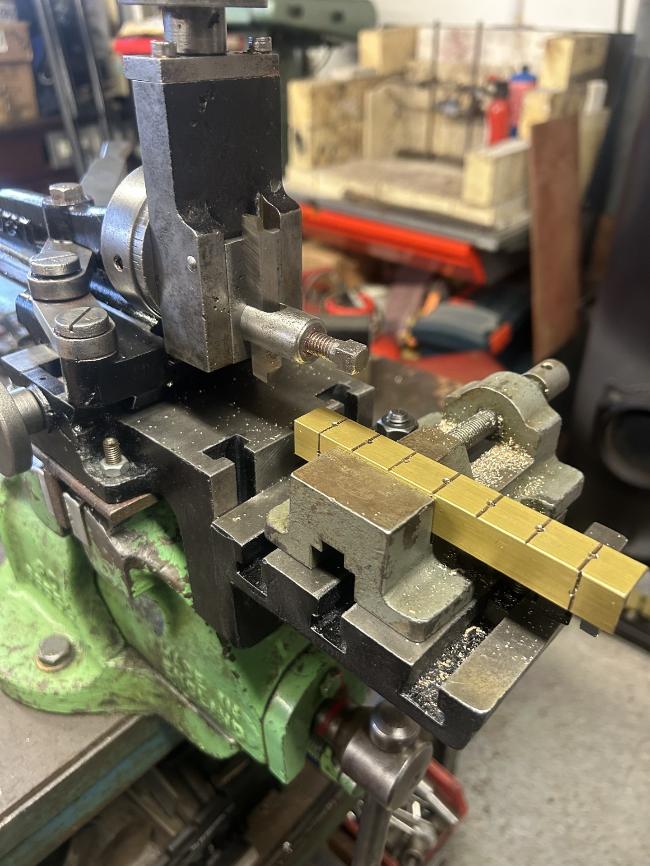

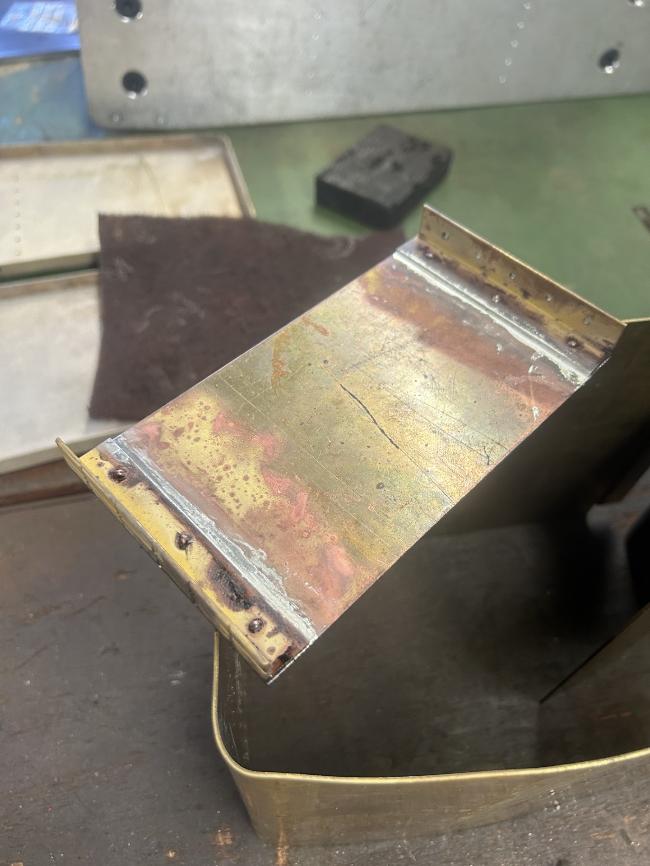

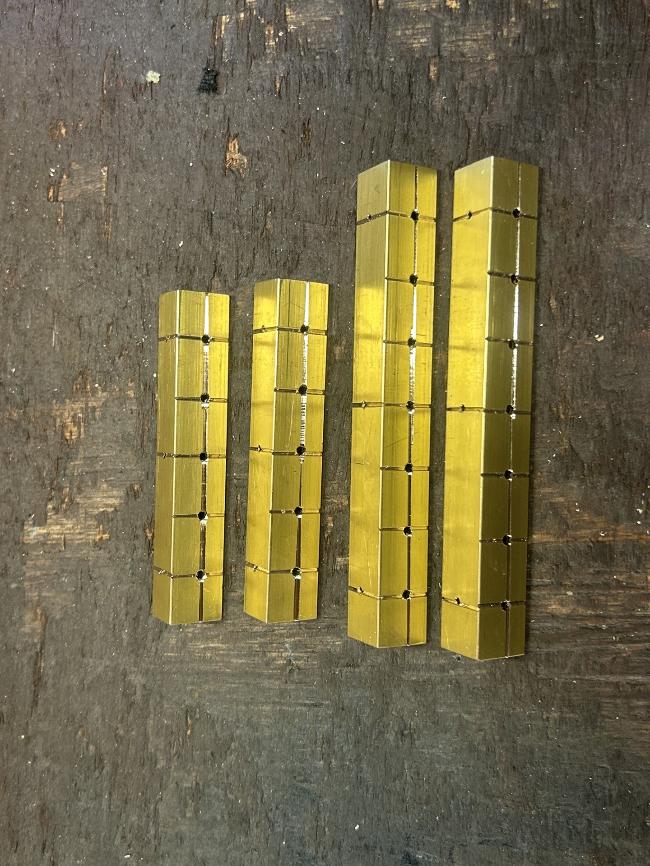

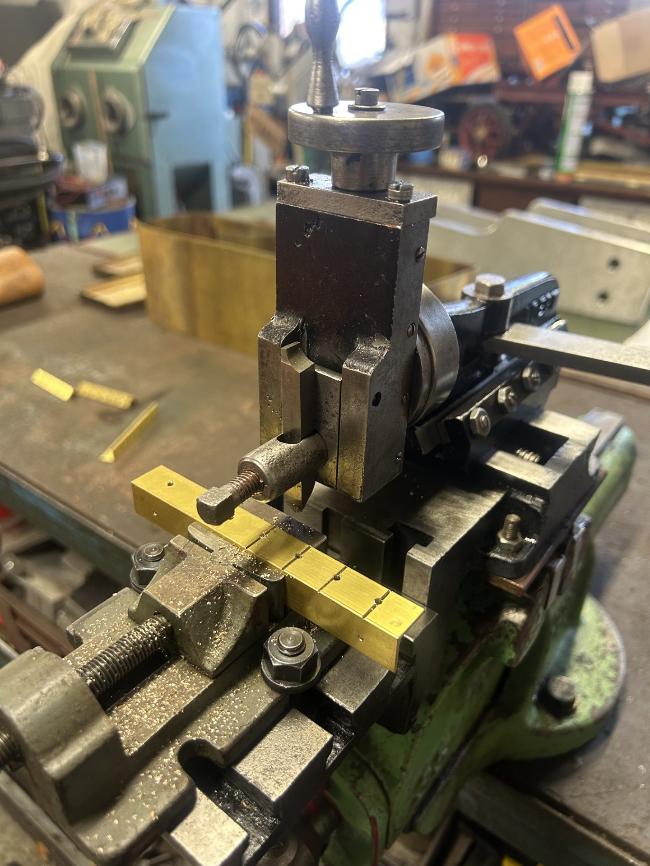

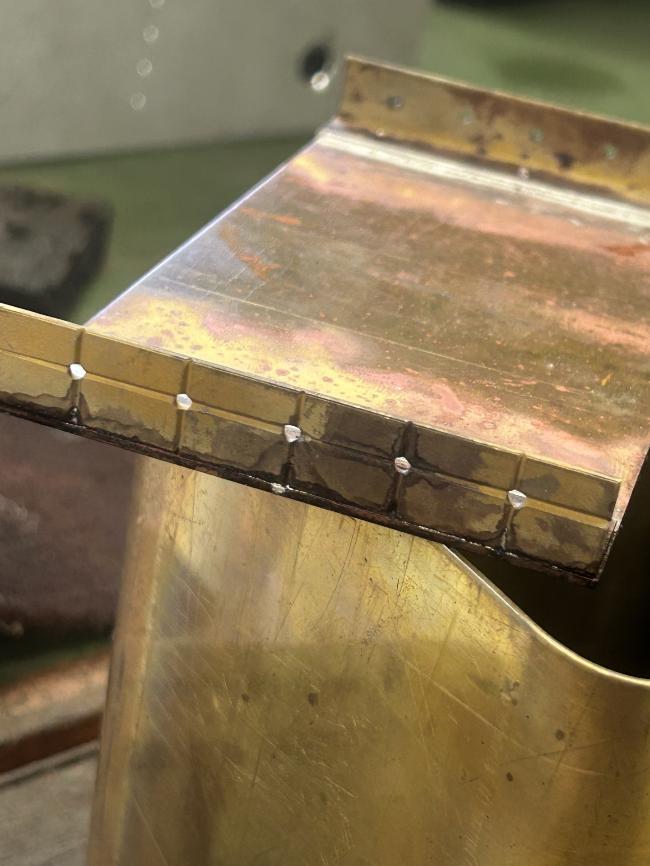

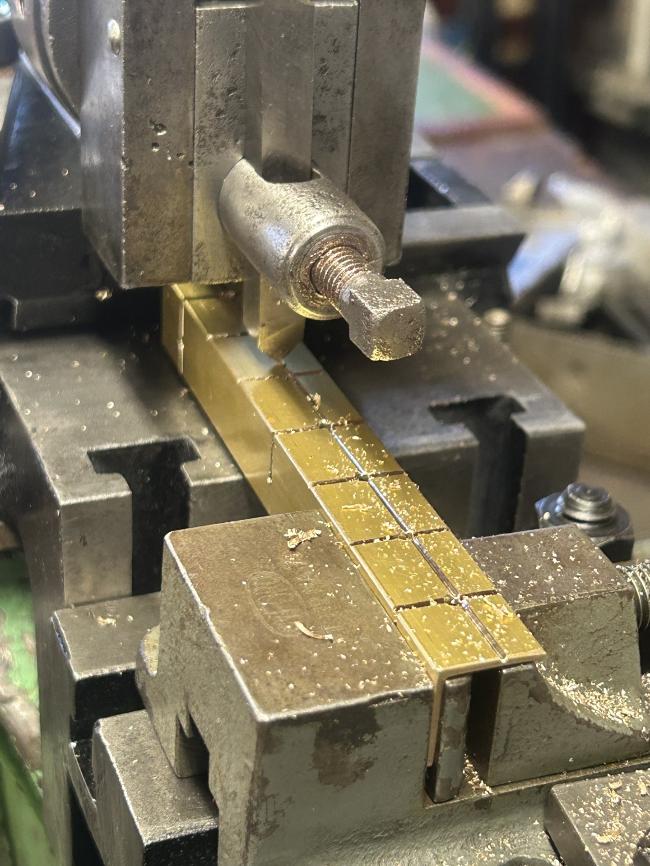

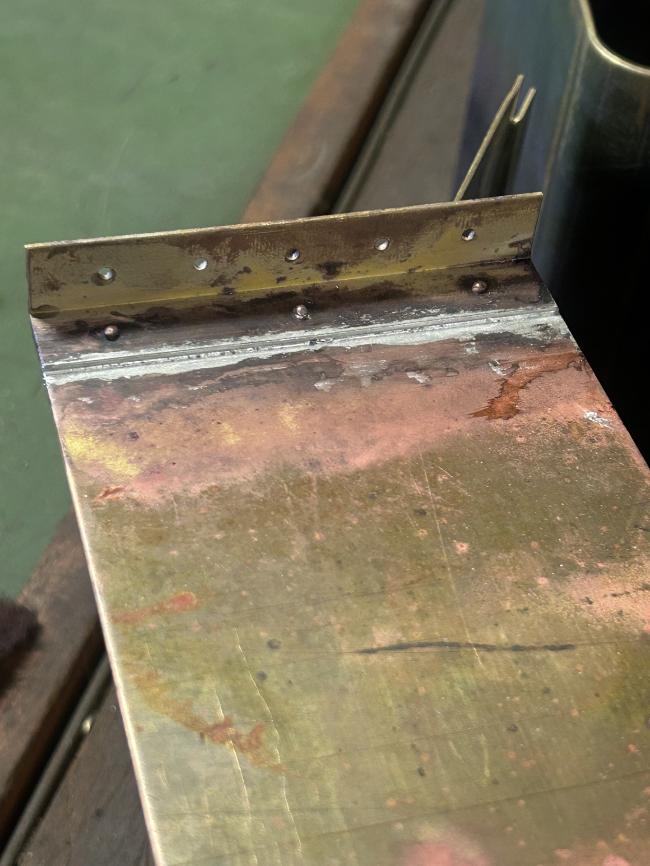

Adept hand operated shaper used to cut grooves for solder to penetrate joint once riveted.
