![](resources/2012-09-14%2009.35.25.jpg.opt650x866o0%2C0s650x866.jpg)

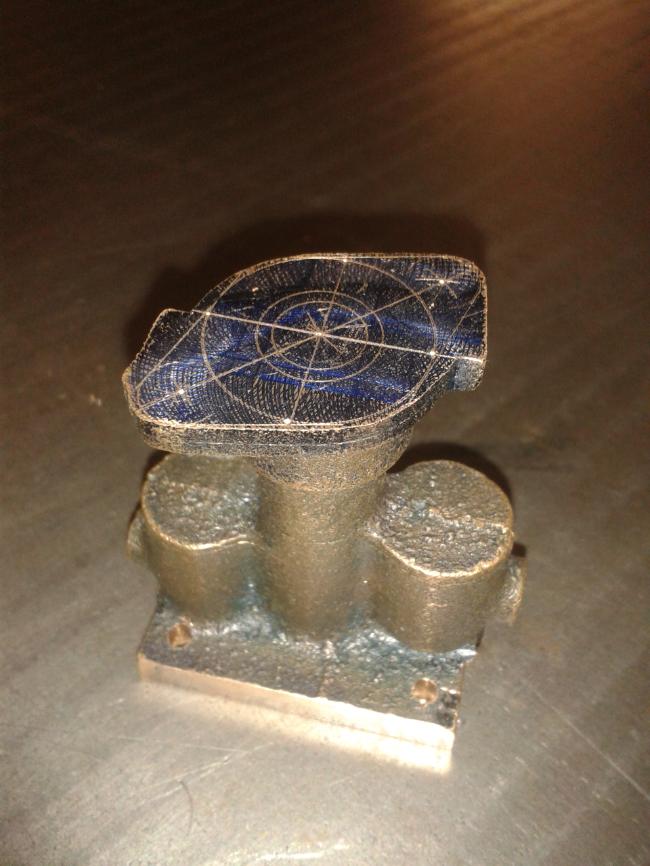

Water pump marked out, and the base plate machined and drilled.
![](resources/2012-09-14%2009.54.08.jpg.opt650x866o0%2C0s650x866.jpg)

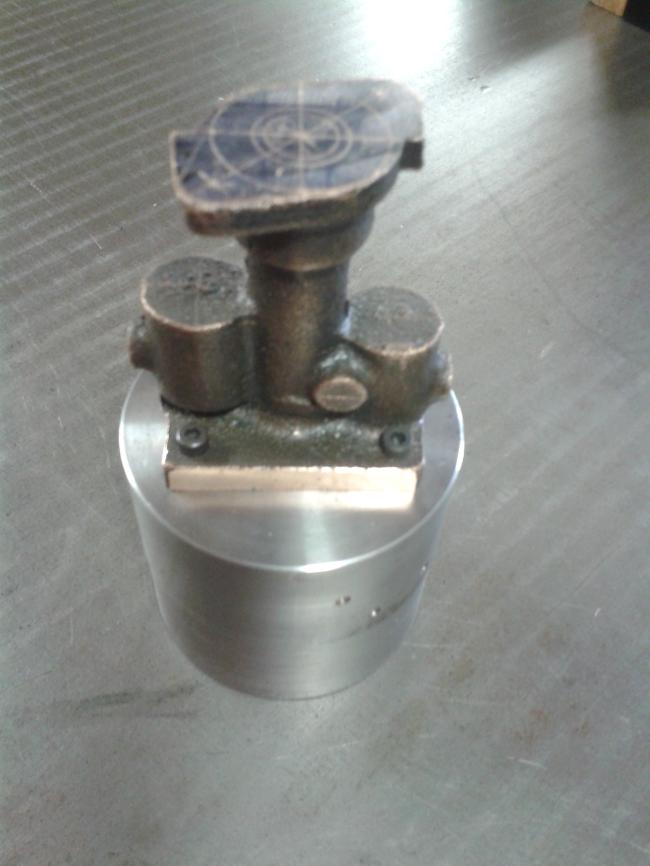

The pump is bolted to a scrap 2" billet concentric, so it can be held in the lathe to machine the ram bore and then transfered to the vertical/ horizontal indexing head on the mill to complete the pump.
