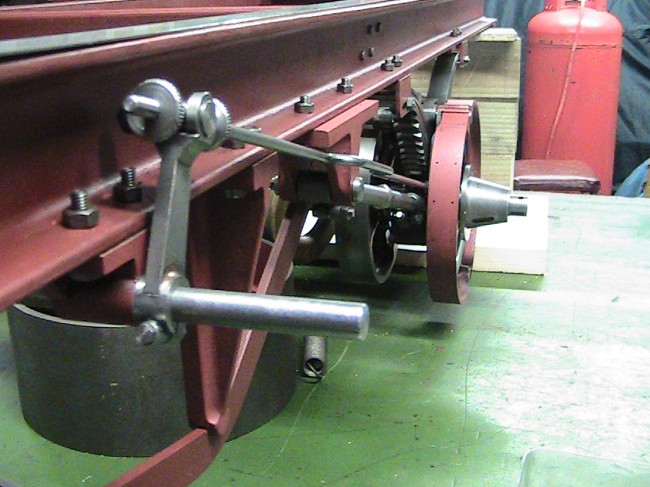

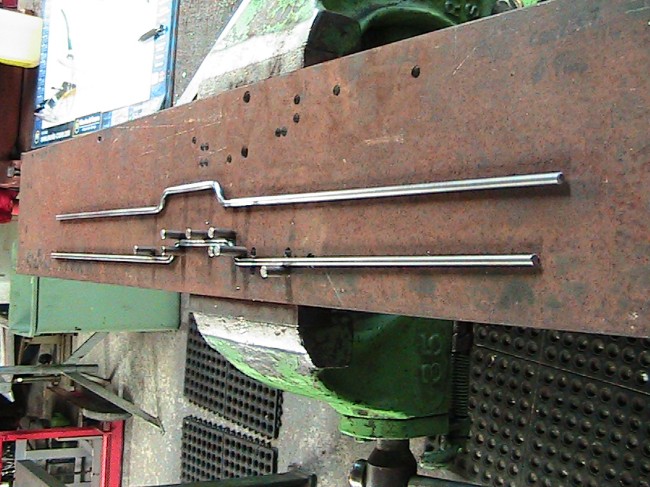

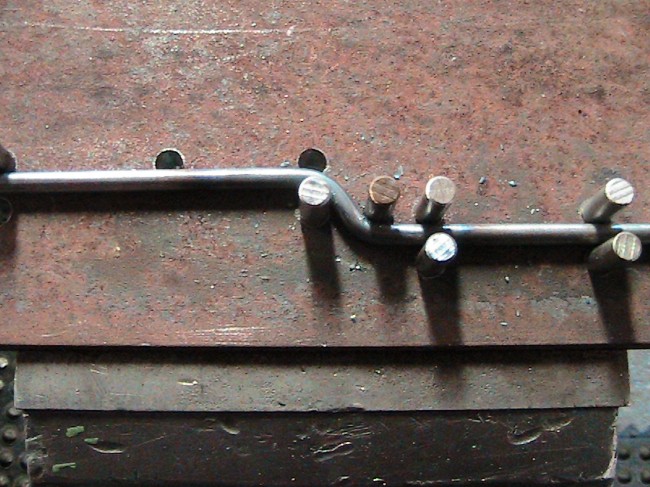

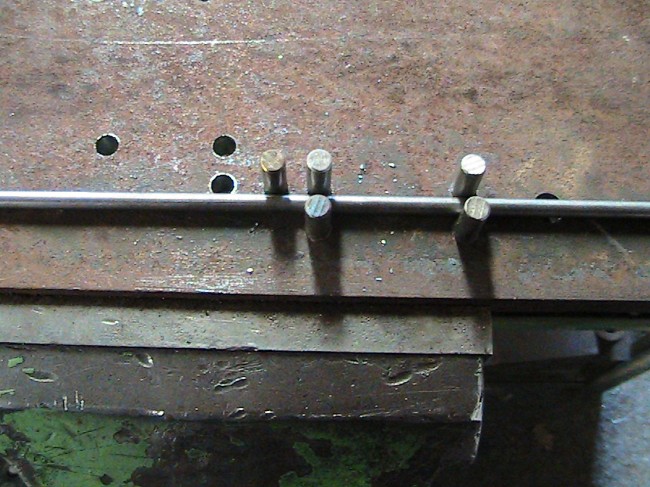

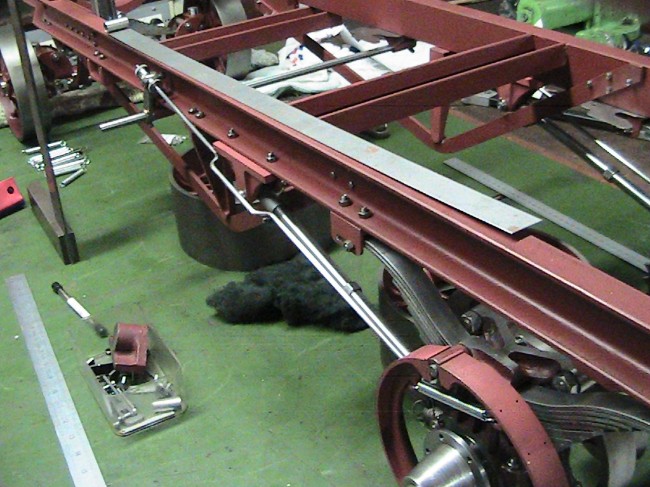

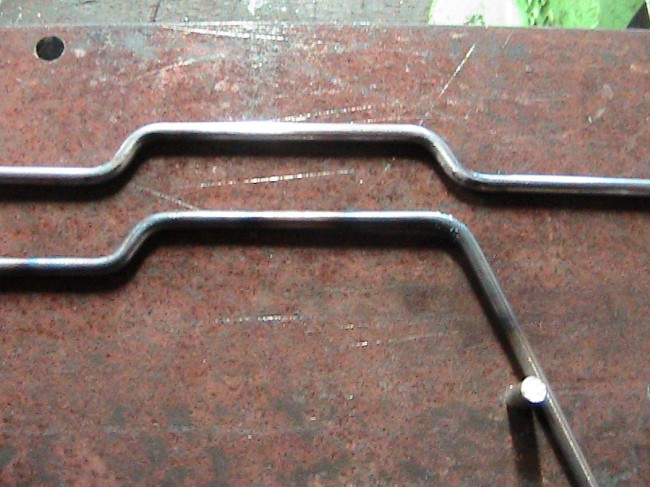

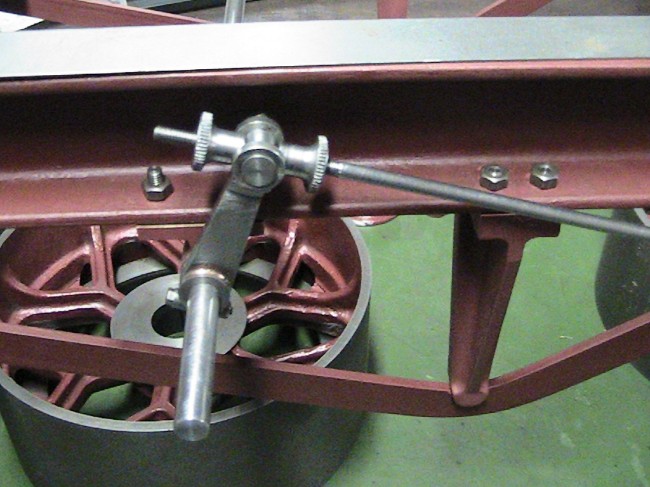

To ensure the cam brake rod misses the radius rod casting a set was need. This page shows the pin jig used to bend the 3/16" diameter rod. The drawing shows a stright rod but this is not possible. I am sure there are other methods that could have been used to overcome this problem.

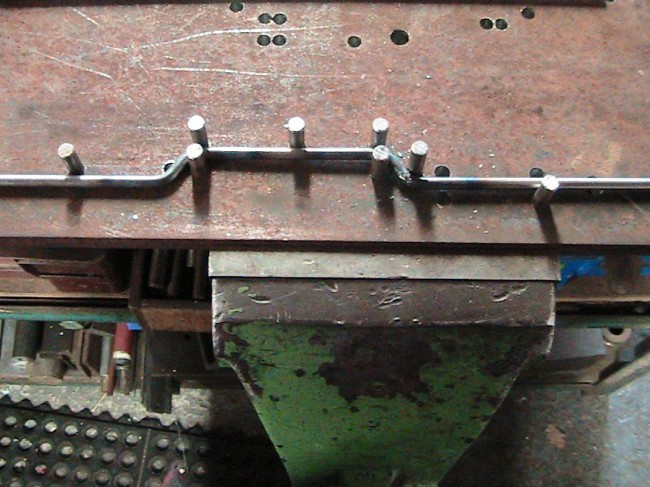

First bend

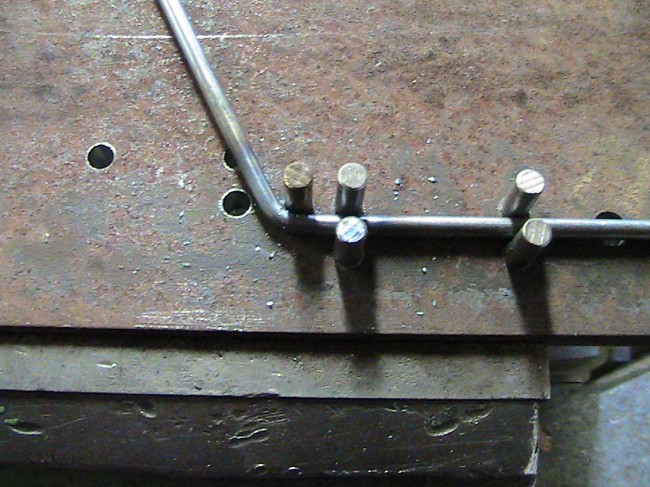

 Second bend
